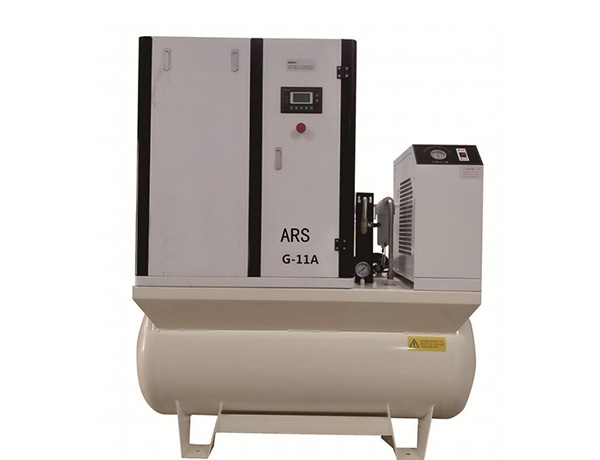

Dedicated ARS Air compressor for laser cutting machine
Air compressor for laser cutting machine requirements
The requirements for compressed air used in laser cutting are: 1, no oil 2, no water, 3. no dust. Laser-cut protective lenses and focusing lenses have very high requirements for the above. They must be oil-free, water-free and dust-free. If it contains any impurities, it will have a direct impact on the cutting effect. If it contains any impurities, it will burn the protective lens and the focusing lens. If it is more productive, the laser cutting head will be scrapped. According to the above requirements, the technical chief engineer carried out targeted technical upgrades and transformations, and completed this laser cutting combined air compressor system. Let the supporting laser machine manufacturers and users use it at ease.
High-efficiency and energy-saving air compressor system
The biggest advantage of air cutting is its low cost, especially for stainless steel plate, aluminum plate, galvanized plate and nitrogen cutting effect. Some aspects can achieve the effect of nitrogen cutting. The perfect cutting of steel plate (2mm) and below can completely replace oxygen cutting. Regardless of the cost or subsequent service fees, the effect of use and the cutting speed, the combination of air compressor systems is an ideal choice for laser cutting gas. Compared with the cost of nitrogen, it can save more than 60% of energy.
Perfectly constructed air compressor system
Ares brand ingenuity to create a laser cutting all-in-one machine, professional customized host, high-efficiency motor, customized stainless steel plate heat exchange refrigerated dryer and air storage tank, five-level precision filter, high filtration accuracy, stable air supply, and compressed air storage The precipitation in the air tank is more conducive to the water discharge and sewage. The cold dryer has a low dew point, sufficient air pumping, fast air pumping, and short time. The entire layout is perfectly combined, and the machine runs smoothly as a whole.
Air compressor for laser cutting machine system requirements
Conditions for laser cutting with air: 1. Satisfy the pressure; 2. Satisfy the flow; the minimum pressure of air cutting cannot be lower than 1.3Mpa. The flow is appropriately selected according to the power of the laser cutting machine and the size of the nozzle used. Cutting combined air pressure system) The pressure is 1.6Mpa to meet the choice of laser cutting machine manufacturers and customers. This system fully covers the laser industry.
Air compressor for laser cutting machine Technical parameters :
| Details | |||||||
| Compressor Model And
Laser cutting machine power suit |
ARS-20HP
（laser 1000-4000W） |
ARS-30HP
(6000W) |
ARS-30HP (12000-15000W) | ARS-50HP
(20000W) |
|||
| TYPE | Integrated | Integrated | Separate | Separate | |||
| Gas | Air | Air | Air | Air | |||
| Atmospheric pressure （kg/cm2A） | 1.033 | 1.033 | 1.033 | 1.033 | |||
| Max.ambient temperature (℃) | ≤45 | ≤45 | ≤45 | ≤45 | |||
| Noise (dBA) at 1 meter | 68±2 | 70±2 | 70±2 | 70±2 | |||
| Main screw tooth profile | The third generation α type asymmetric 5-6 tooth profile | ||||||
| Max.working pressure（MPa） | 1.6 | 1.6 | 1.6 | 1.6 | |||
| Displacement （m3/min） | 1.28 | 2.08 | 2.18 | 3.6 | |||
| transmission | Direct drive | Direct drive | Direct drive | Direct drive | |||
| Exhaust temperature (℃) | ≤Ambient temperature+15℃ | ||||||
| Cooling mode | Air-cooled | Air-cooled | Air-cooled | Air-cooled | |||
| Motor power （kW） | 15 | 22 | 22 | 37 | |||
| Voltage ( V/PH/HZ) | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | |||
| Start method | Star Delta Start | Star Delta Start | Star Delta Start | Star Delta Start | |||
| Rotate speed | 2920 | 2920 | 2920 | 2920 | |||
| Machine size（L*W*Hmm） | 1600*780*1700 | 1800*850*1800 | |||||
| Compressor size（L*W*Hmm） | 1200*850*1300 | 1350*900*1300 | |||||
| Machine weight (kg) | 530 | 680 | 780 | 860 | |||
| Exhaust connection size | DN20 | DN25 | DN25 | DN32 | |||
| Technical parameters of ARS stainless steel plate for refrigeration dryer | |||||||
| Air handling capacity（M³/min） | 1.5 | 2.5 | 2.5 | 3.8 | |||
| Max. inlet pressure（Mpa） | 1.6 | 1.6 | 1.6 | 1.6 | |||
| Inlet temperature（℃） | ≤80 | ≤80 | ≤80 | ≤80 | |||
| Rated maximum ambient temperature（℃） | 40 | 40 | 40 | 40 | |||
| Dew point temperature（℃） | 2-6 | 2-6 | 2-6 | 2-6 | |||
| Refrigerant | R22 | R22 | R22 | R22 | |||
| Absorbed power（kw） | 0.695 | 0.95 | 0.95 | 1.35 | |||
| Cooling mode | Air-cooled | Air-cooled | Air-cooled | Air-cooled | |||
| Votage | 1hp/220V/50HZ | 1hp/220V/50HZ | 1hp/220V/50HZ | 1hp/220V/50HZ | |||
| Compressed air inlet | DN15 | DN25 | DN25 | DN32 | |||
| Heat ExchangerType | Stainless steel plate | Stainless steel plate | Stainless steel plate | Stainless steel plate | |||
| Refrigerant compressor | Panasonic (Japan) | Panasonic (Japan) | Panasonic (Japan) | Panasonic (Japan) | |||
| Dryer size（L*W*H mm） | 570*290*630 | 790*320*900 | 790*320*900 | 790*450*900 | |||
| Precision filter | |||||||
| Gas-water separator | 50G | 100G | 100G | 200G | |||
| Precision filter Q | Processing capacity 1.5m3/min | Processing capacity 2.5m3/min | Processing capacity 2.5m3/min | Processing capacity 3.8m3/min | |||
| Filtration accuracy 5μm | Filtration accuracy 5μm | Filtration accuracy 5μm | Filtration accuracy 5μm | ||||
| Filtration accuracy 5ppm | Filtration accuracy 5ppm | Filtration accuracy 5ppm | Filtration accuracy 5ppm | ||||
| Precision filter P | Processing capacity 1.5m3/min | Processing capacity 2.5m3/min | Processing capacity 2.5m3/min | Processing capacity 3.8m3/min | |||
| Filtration accuracy 1μm | Filtration accuracy 1μm | Filtration accuracy 1μm | Filtration accuracy 1μm | ||||
| Filtration accuracy 2ppm | Filtration accuracy 2ppm | Filtration accuracy 2ppm | Filtration accuracy 2ppm | ||||
| Precision filter S | Processing capacity 1.5m3/min | Processing capacity 2.5m3/min | Processing capacity 2.5m3/min | Processing capacity 3.8m3/min | |||
| Filtration accuracy 0.01μm | Filtration accuracy 0.01μm | Filtration accuracy 0.01μm | Filtration accuracy 0.01μm | ||||
| Filtration accuracy <0.01ppm | Filtration accuracy <0.01ppm | Filtration accuracy <0.01ppm | Filtration accuracy <0.01ppm | ||||
| Precision filter C | Processing capacity 1.5m3/min | Processing capacity 2.5m3/min | Processing capacity 2.5m3/min | Processing capacity 3.8m3/min | |||
| Filtration accuracy 0.01μm | Filtration accuracy 0.01μm | Filtration accuracy 0.01μm | Filtration accuracy 0.01μm | ||||
| Filtration accuracy <0.01ppm | Filtration accuracy <0.01ppm | Filtration accuracy <0.01ppm | Filtration accuracy <0.01ppm | ||||
| Lifetime | 6000h | 6000h | 6000h | 6000h | |||
| Gas storage tank parameters | |||||||
| Model | C-0.4 | C-0.6 | C-1.0 | C-1.0 | |||
| Pressure test pressure（ MPa） | 1.94 | 1.94 | 2.2 | 2.2 | |||
| Nominal volume（m3） | 0.4 | 0.6 | 1.0 | 1.0 | |||
| set tempreture（℃） | 100 | 100 | 100 | 100 | |||
| Inlet&outlet size | DN15 | DN20 | DN32 | DN32 | |||
| Barrel inner diameter （mm） | 600 | 650 | 800 | 800 | |||
| Barrel length（mm） | 1500 | 1750 | 2050 | 2250 | |||
| Equipped with laser cutting machine power (W) | 1000-4000 | 6000-8000 | 6000-12000 | 15000-20000 | |||
| Air compressor for laser cutting machine configuration | |||||||
| No. | Item | Qut. | Brand | Note | |||
| 1 | Host | 1 set | Bowes | ||||
| 2 | Motor | 1 set | Dongxinte/Lossi | ||||
| 3 | Temperature Sensor | 1 set | Fenghua, Ningbo | ||||
| 4 | Pressure Sensor | 1 set | Fenghua, Ningbo | ||||
| 5 | AC contactor | 1 set | Schneider | ||||
| 8 | Fan | 1 set | Changfeng | ||||
| 9 | Freeze dryer | 1 set | ARS | ||||
| 10 | Post-processing filter | 5 sets | ARS | ||||
| 12 | Intake valve | 1 set | Red star | ||||
| 13 | Min. pressure valve | 1 set | Red star | ||||
| 14 | Controller | 1 set | Plett | ||||
