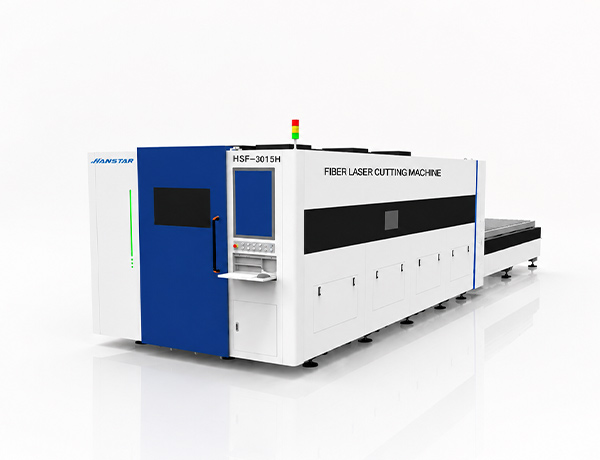

Medium Power Laser Cutting Machine HSF-3015H

Industrial Laser Cutting Machine HSF-3015H ,sheet metal processing, rail transit, shipbuilding, automobiles, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, food machinery, textile machinery, tool processing, petroleum machinery, food machinery, Various machinery manufacturing and laser external processing services.

Medium Power 3000W 6000W 8000W CNC exchange bed full enclosed  laser cutting machine HSF-3015H

Application industries:

Industrial Laser Cutting Machine HSF-3015H ,sheet metal processing, rail transit, shipbuilding, automobiles, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, food machinery, textile machinery, tool processing, petroleum machinery, food machinery, Various machinery manufacturing and laser external processing services.

  1. Cutting material:carbon steel,  stainless steel, aluminum alloy, brass, pickling plate, galvanized plate, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy, nickel plate and other metal materials.
  2. Cutting range: according to laser source power ,from 0.5~40mm carbon steel, 0.5~40mm stainless steel, 0.5~30mm aluminum alloy, 0.5~16mm brass.

 Technical Parameters of industrial laser cutting machine:

Machine Model HSF-3015H
Laser source Fiber Laser
Laser power 1000W-6000w optional
Optional Cutting size 3000x1500mm/3015/4015/4020/6015/6020 optional
Z axle stroke 100 mm
Max positioning speed 150m/min
Maximum acceleration 1.0-1.5G
Max height of feeding material more than 120mm
Cooling way water cooling
Laser wavelength 1070nm
Min. cutting gap ≤0.1mm
Positioning accuracy of X, Y and Z axles ±0.03 mm
Repeated positioning  accuracy of X, Y and Z axles ±0.01 mm
Working temperature 5℃-45℃
Power requirement 380V,50/60Hz(customized for you)
Continuous working time 24 Hours
Machine weight in total 6.5 tons/1-3kw
Machine positioning accuracy ±0.03mm/m
Edge detection accuracy ±0.5
Rated input voltage 380V±10%

4.Others size of industrial laser cutting machine

Machine Model HSF-3015H HSF-4015H HSF-6015H HSF-4020H HSF-6020H
Cutting Size 3000×1500 4000×1500 6000×1500 4000×2000 6000×2000
Machine Model HSF-6025H
Cutting Size 6000X2500

 Areas of Use and Capabilities of industrial laser cutting machine:

  1. Suitable for cutting space: two-dimensional plane cutting;
  2. Application industries: sheet metal processing, rail transit, shipbuilding, automobiles, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, food machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchenware and bathroom, Various machinery manufacturing and processing industries such as decorative advertising and laser external processing services;
  3. Cutting material: high carbon steel, low carbon steel, stainless steel, aluminum alloy, brass, pickling plate, galvanized plate, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy, nickel plate and other metal materials.
  4. Cutting thickness range: 0.5~40mm carbon steel, 0.5~40mm stainless steel, 0.5~30mm aluminum alloy, 0.5~16mm brass.

Advantages of Industrial Laser Cutting Machine :

1..One-piece cast aluminum beam.

Cast aluminum achieves the lightest weight when stability is required, so that the machine tool can still run stably without shaking even when it reaches 1.5G acceleration. The one-piece beam can ensure that the beam remains stable and does not shake during high-speed movement.

As shown in the figure 2 below, the beam (from other china supplier)is only connected with the machine tool by screws, and the machine tool will loosen when it runs, affecting the cutting accuracy.

2.Industrail laser cutting machine head Aluminum mounting slider

laser Cutting head Aluminum mounting slider Aviation aluminum extruded slider is light in weight, high in hardness, and easy to adjust, ensuring smooth running of the slider, reducing mechanical friction, no noise during movement, and extending its service life.

We have installed automatic lubricating oil for the slider, which can effectively prevent mechanical wear。

3.Industrail  laser cutting machine with Simple, clear circuit routing, more convenient maintenance 2.Electric control cabinet equipped with air conditioning to ensure that the electrical appliances work more smoothly under high temperature conditions in summer

4.Industrail laser cutting machine with fast high cutting speed .

Travel speed 90meters /minutes,with an Real 1.5G acceleration speed at cypcut system ,at an travel low -pass frequencey 6hz with an cutting low -pass frequency 5hz .Machine runs stably without shaking,1-3kw bed ,4kw-6kw bed 1kw-6kw open table ,laser source power optional .

5.Big heavy square tube welding bed

This bed is welded by large square tubes, and we use 6mm thickness square tubes, which are stable and have high strength. This bed is mainly used for 3015 laser and laser power source from 1kw to 6kw .

After the bed is welded, PWHT heat treatment is performed to relieve stress and ensure that the structure is not deformed.

And a good dust removal system has been established to ensure that all smoke and dust generated during cutting are removed. And insulation protection has been added to ensure that the machine tool will not be damaged or deformed by laser even after long-term cutting.

Industrial Laser Cutting Machine HSF-3015H Cutting Samples:
