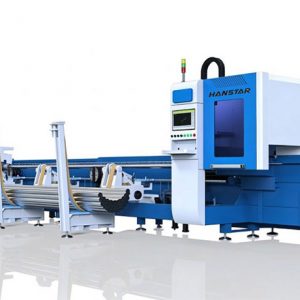

Metal Laser Cutting Machine HSFT-3015H Advantages:
Easy to operate
Selectable laser power
Customizable cutting area
Two functions ,sheet metal and tube pipe cutting in one machine
Heavier bed, stronger Loading capacity,and strong stability
Technical Details :
| Machine Model | HSFT-3015H (metal laser cutting machine ) |
| Laser source | Fiber Laser |
| Laser power | 6000W / 6000w-12000w(Optional) |
| Optional Sheet Cutting size | 3000x1500mm/3015/4015/4020/6015/6020(Optional) |
| Tube Cutting Size | Diameter/Length Φ230mm /3meters |
| X-axis effective stroke | 2300mm |
| Cutting tube tailings | 180mm |
| Y-axis effective stroke | 3050mm |
| Max positioning speed | 150m/min |
| Maximum acceleration | 1.0G |
| Max height of feeding material | more than 120mm |
| Cooling way | water cooling |
| Laser wavelength | 1070nm |
| Min. cutting gap | ≤0.1mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X Y Z axles | ±0.01 mm |
| Working temperature | 5℃-45℃ |
| Power requirement | 380V,50/60Hz(customized for you) |
| Continuous working time | 24 Hours |
| Machine weight in total | 21 tons |
| Machine positioning accuracy | ±0.03mm/m |
| Edge detection accuracy | ±0.5 |
| Rated input voltage | 380V±10% |
Advantages of HSFT-3015H High precision heavy duty professional sheet & tube metal laser cutting machine
1.Machine structure bed
Machine Bed with 16 mm steel full board welding structure, adding stiffeners good rigidity, high strength; after large CNC gantry milling machine 8 * 2.5m precision machining, all welding parts are more than 24 hours of aging fade fire treatment (fade is Kg of the price), to eliminate pre-stress.
and effectively prevent the structural deformation; other manufacturers using pipe welding structure, rail parallelism can not be guaranteed.
2.Patented High-strength special steel casting gantry
Independent research and development of new cast steel beams, light weight, high rigidity and good dynamic performance，Fast running speed, good stability and long-term accuracy.Stronger rigidity to ensure one machine for dual use, high precision for cutting pipes and cutting sheets.
3.Aluminum slider
Aviation aluminum extruded slider is light in weight, high in hardness, and easy to adjust, ensuring smooth running of the slider, reducing mechanical friction, no noise during movement, and extending its service life.
4..Laser cutting Pneumatic Chuck
The chuck 235 full-stroke CNC chuck, built-in integrated motor and reducer, powered from the side into the chuck, through the touch screen WIFI control to achieve clamping and unclamping actions, can clamp the full range of applicable pipe fittings, improve production efficiency . The four-jaw guide is driven by a guide rail mechanism to truly achieve self-centering.
The external laser rangefinder can monitor the radial runout of the workpiece in real time according to the center position of the clamping, which greatly reduces the labor cost of the machine and improves the production efficiency. Stability and wear resistance are better. It is widely used in pipe processing machine tools such as laser pipe cutting machine, plate and pipe integrated machine.
Working environment Requirements of metal laser cutting machine.
1.The ambient temperature is required to be between 15-45 °C.
2.The humidity requirement is 10%-80%. No condensation. 3, power supply grid requirements: AC380V ± 10%, 50Hz.
3.Power grounding resistance: ≤ 3 ohm。
4.There should be no strong electromagnetic signal interference near the installation equipment. Avoid radio transmitting stations (or relay stations) around the installation site.
5.The ground amplitude is less than 50um; the vibration acceleration is less than 0.05g. Avoid a large number of machine tools such as stamping in the vicinity.
6, Avoid metal dust polishing and other dusty working environment.
7.The water quality of the working cooling circulating water is strictly required. It is required to use pure water, deionized water or distilled water. Water such as tap water or mineral water containing high metal ions or other minerals cannot be used.
Cutting Samples of metal laser cutting machine :
